NEO COOLCAM NAS-PD02Z New Z-wave PIR Motion Sensor Detector Home Automation Alarm System Motion Alarm
This is the Z-wave Wifi PIR Motion detection,Compatible with z-wave 300 series and 500 series.
PIR is a passive infrared detector or physical sensor.the sensor doesn't emit any energy but only passively receive and detect infrared radiation from outside.under room temperatur.all items have radiation.Human beings are warm-blooded animal with stable infrared radiation.are most easily to be detected.That's why we also call it body snsor.PIR send messages via Z-wave network to the Z-wave mail controller.In the Z-Wave network communications.PIR can be connected to any Z-wave main controller.different countries or areas.the radio frequency is different of the Z-wave main controller.different countries or areas.the radio frequency is different of the Z-wave network.In the communication between the PIR and Z-wave main controller.PIR can only send messages,not be able to receive messages.When the PIR is triggered.PIR will send messages to the Z wave main controller.and associate devices to work through the z wave main controller.The PIR is battery powered,is small and con be installed easily
Features:
3 in one,Motion detection+Lux+Temperature
Compatible with 300 series and 500 series
Range: up to 70m outdoor up to 50m indoor
Power supply: CR123A x 1
Standby current: 15uA
Battery life: 1.2 years

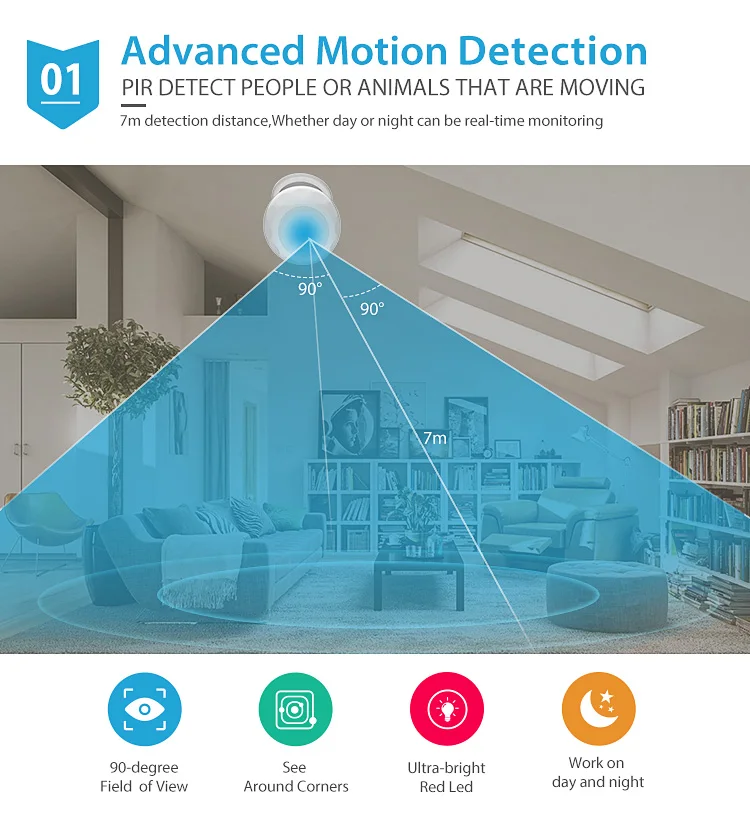

Detection range: 7 meters
Viewing angle: 90 degree
Operation temper: 0-40°
Storage temperature: -20-60°
Product size(D*W*H): 45x 45 x 48mm
?
- Motion sensor
- Suspension bracket
- Sticker to hang on him (3M)
- Manual (English)
Appearance:
Size:
